Cast Stone Plinths are used as a decorative feature, usually around the base of the building where the brickwork sets back.
Cast Stone Plinths are manufactured to replicate natural stone Plinths & String Courses and come in six standard colours: Bath, Buff, Holyrood, Portland, Glamis Red & Sherwood.
Our Wall Plinths come with a chamfered edge to complete the look of your building. If you�re looking for additional Cast Stone feature pieces, our Wall Plinths can be used in conjunction with Cast Stone String Courses and Quoin Stones.
Our product range includes:
All Cast Stone products are UKCA/CE marked where appropriate.
Technical Information
See all available sizes in table below.
View our Technical Information on our Technical Information page.
Please contact our team for Declaration of Performance. Email [email protected]
Get in Touch
To speak to a member of our sales team call 0333 234 3434 - opt.1, opt. 4, or click the button below to use our contact form.
For technical enquiries contact our team: [email protected]

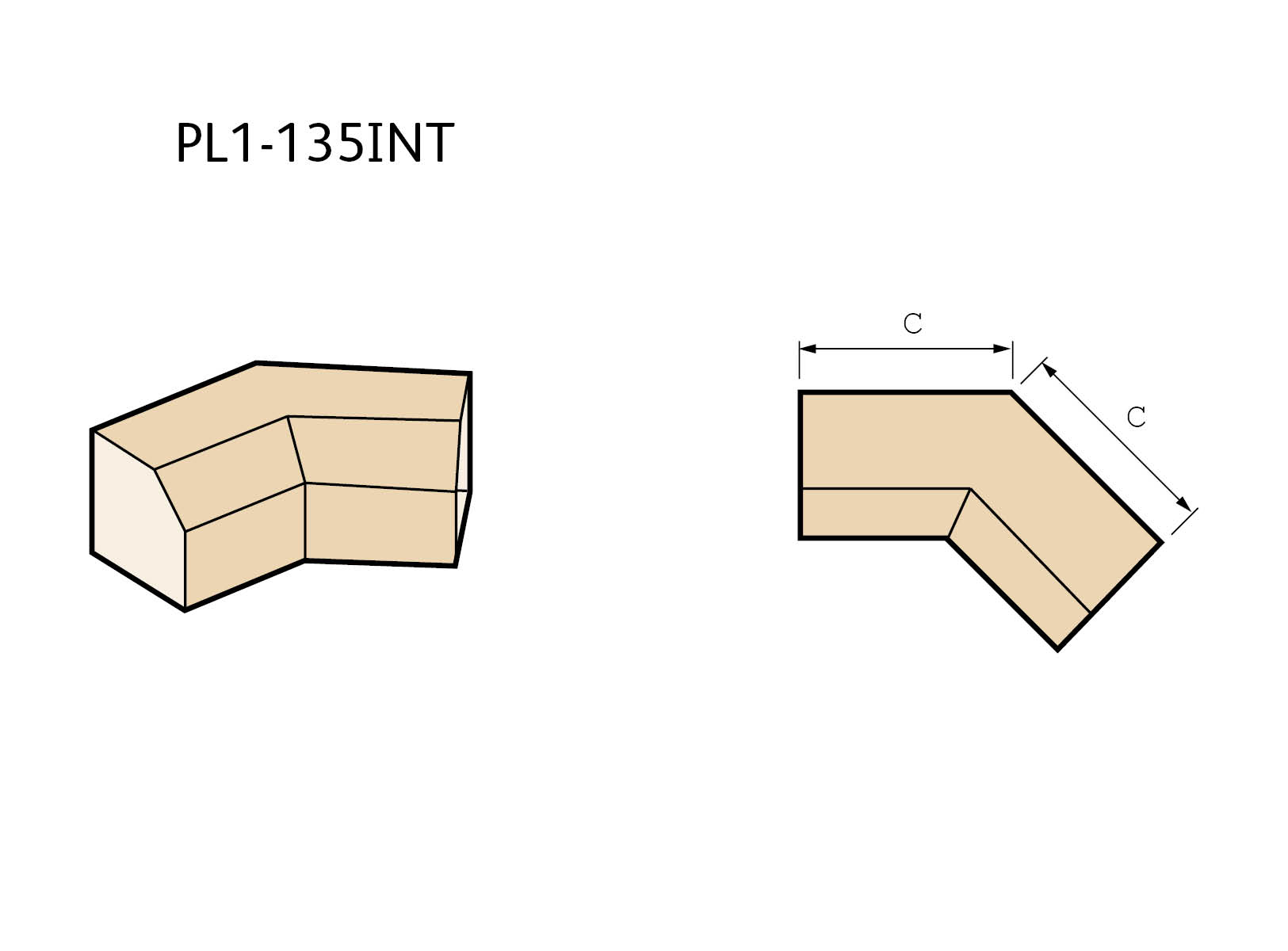

| Code | A | B | C | D | E | F | Weight (Kg) |
|---|---|---|---|---|---|---|---|
| PL1 | 150 | 140 | 890 | 50 | 50 | 90 | 37 |
| PL11-90E | 150 | 140 | 215 | 50 | 50 | 90 | 12 |
| PL1-90INT | 150 | 140 | 215 | 50 | 50 | 90 | 12 |
| PL1-135E | 150 | 140 | 215 | 50 | 50 | 90 | 15 |
| PL1-135INT | 150 | 140 | 215 | 50 | 50 | 90 | 15 |
| PL2 | 150 | 215 | 440 | 50 | 50 | 165 | 29 |
| PL2-90E | 150 | 215 | 215 | 50 | 50 | 165 | 18 |
| PL2-90INT | 150 | 215 | 215 | 50 | 50 | 165 | 18 |
| PL2-135E | 150 | 215 | 215 | 50 | 50 | 165 | 24 |
| PL2-135INT | 150 | 215 | 215 | 50 | 50 | 165 | 24 |
| PL3 | 150 | 140 | 890 | 50 | 110 | 30 | 34 |
| PL3-90E | 150 | 140 | 215 | 50 | 110 | 30 | 11 |
| PL3-90INT | 150 | 140 | 215 | 50 | 110 | 30 | 11 |
| PL3-135E | 150 | 140 | 215 | 50 | 110 | 30 | 14 |
| PL3-135INT | 150 | 140 | 215 | 50 | 110 | 30 | 14 |
| PL4 | 150 | 215 | 440 | 50 | 110 | 105 | 27 |
| PL4-90E | 150 | 215 | 215 | 50 | 110 | 105 | 18 |
| PL4-90INT | 150 | 215 | 215 | 50 | 110 | 105 | 18 |
| PL4-135E | 150 | 215 | 215 | 50 | 110 | 105 | 23 |
| PL4-135INT | 150 | 215 | 215 | 50 | 110 | 105 | 23 |
